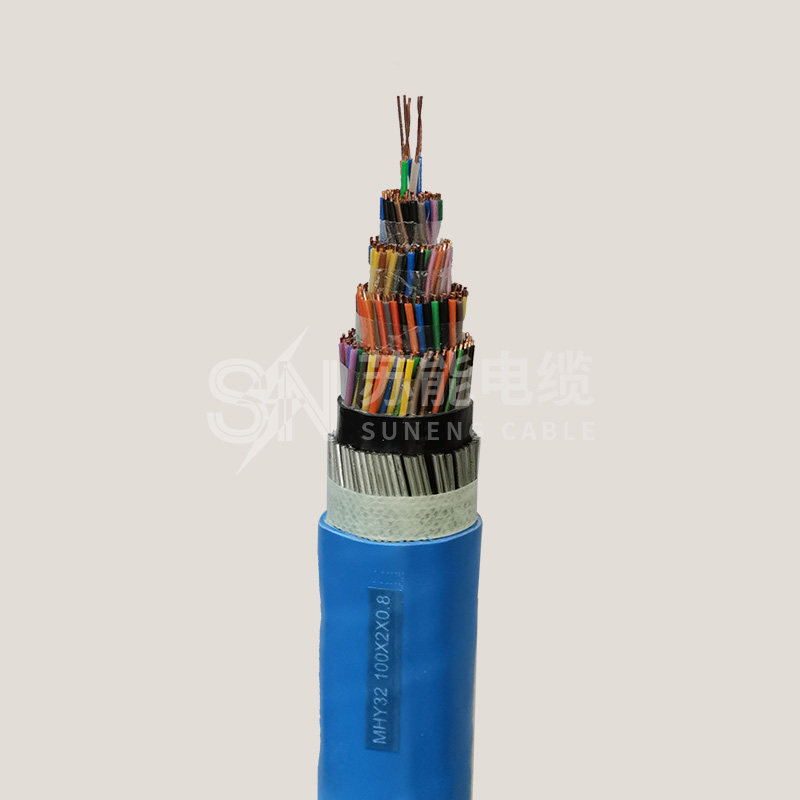

矿用通信信号电缆 MHYA32

矿用通信信号电缆 MHYA32

  • 所属分类:矿用通信信号电缆
  • 浏览次数:
  • 发布日期:2021-07-20 10:06:08
  • 产品概述
  • 性能特点
  • 技术参数

MHYA32—矿用通信电缆:煤矿用聚乙烯绝缘铝-聚乙烯粘接护层钢丝铠装聚氯乙烯护套通信电缆。

适用范围:用于煤矿井下斜井或竖井,有较强的抗拉作用。


矿用通信信号电缆 MHYA32

Fire retardant signal cables for coal mine

产品采用标准:

Standards implemented

Q/321084KKZ01-2007

电线电缆型号规格见(表1、表2)

Models and specifications of cables and wires (see table 1and 2)

表1  table1

型  号

Model

导体结构(对数)

Conductor structure (pairs)

名    称

Name

适 用 范 围

Scope of application

MHYVR

(PUYVR)

7/0.30、7/0.37、7/0.43、7/0.52

(1~10对、2-7芯)

煤矿用聚乙烯绝缘聚氯乙烯护套阻燃通信电缆

PE insulated PVC sheathed fire retardant communication cables for coal mine

用于平巷、斜巷及机电硐室

Used in level; or slanted channels and power house

MHYBV

(PUYV31)

1/1.0、1/1.38

(1~10对、2-7芯)

煤矿用聚乙烯绝缘镀锌钢丝编织铠装聚氯乙烯护套阻燃通信电缆

PE insulated tinned steel wire weave armored PVC sheathed fire retardant communication cables for coal mine

用于机械冲击较高的平巷和斜巷

Served in level and slanted channels where the mechanic impact is strong

MHY32

(PUYV39.39-1)

1/1.38

(1~10对、2-7芯)

煤矿用聚乙烯绝缘钢丝铠装聚氯乙烯护套阻燃通信电缆

PE insulated steel wire armored PVC sheathed fire retardant communication cables for coal mine

用于煤矿竖井或斜井作主信号线能承爱较大拉力

Served as maior signal line in shaft or slanted shaft in coal mines, capable of being under considerable pull force

MHYVRP

(PUYVRP)

7/0.30、7/0.37、7/0.43、7/0.52

 (1~10对、2-7芯)

煤矿用聚乙烯绝缘铜丝编织屏蔽聚氯乙烯护套阻燃通信软电缆

PE insulated copper wire weave shielded PVC sheathed fire retardant communication soft cables

用于井下干扰较大的场合

Served in coal mine where interfere-ence is strong

MHYVP

(PUYVP)

1/1.38

(1~10对、2-7芯)

煤矿用聚乙烯绝缘铜丝编织屏蔽聚氯乙烯护套阻燃通信电缆

PE insulated copper wire weave shielded PVC sheathed fire retardant communication cables

用于井下干扰较大的场合

Served in coal mine where interfere-ence is strong

MHYBVR

(PUYVR31)

7/0.43、7/0.52

 (1~10对、2-7芯)

煤矿用聚乙烯绝缘镀锌钢丝编织铠装聚氯乙烯护套阻燃通信软电缆

PE insulated galvanized steel wire weave armored PVC shielded fire re-tardant communication soft cables

用于井下抗冲击较高的平巷和斜巷

Applied in level or slanted channels where impact is heavy

MHYR32

(PUYVR39.39-1)

7/0.52

(1~10对、2-7芯)

煤矿用聚乙烯绝缘钢丝铠装聚氯乙烯护套阻燃通信软电缆

PE insulated steel wire weave armored PVC shielded fire retardant communication soft cables

用于煤矿竖井或斜井作主信号线能承受较大拉力

Served as maior signal line in shaft or slanted shaft in coal mines, capable of being under considerable pull force

硅橡胶电线

表2   table 2


型号Model

MHYVR

MHYBV

MHYV32

MHYVR

MHYVP

MHYBV

MHYVR32

对数×芯数

No. of pairs×

No.of cores

1×2

1×2

1×2

1×2

1×2

1×2

1×2

1×4

1×4

1×4

1×4

1×4

1×4

1×4

1×3

1×3

1×3

1×3

1×3

1×3

1×3

1×5

1×5

1×5

1×5

1×5

1×5

1×5

1×6

1×6

1×6

1×6

1×6

1×6

1×6

1×7

1×7

1×7

1×7

1×7

1×7

1×7

2×2

2×2

2×2

2×2

2×2

2×2

2×2

3×2

3×2

3×2

3×2

3×2

3×2

3×2

4×2

4×2

4×2

4×2

4×2

4×2

4×2

5×2

5×2

5×2

5×2

5×2

5×2

5×2

6×2

6×2

6×2

6×2

6×2

6×2

6×2

8×2

8×2

8×2

8×2

8×2

8×2

8×2

10×2

10×2

10×2

10×2

10×2

10×2

10×2


命名代号

Codes

煤矿用通信电缆Communication cables for coal mine……………………………………(MH)

铜质线芯Copper core……………………………………………………………… 省略omitted

聚乙烯绝缘PE insulated…………………………………………………………………………Y

聚乙烯内护套 PE inner sheath …………………………………………………… 省略omitted

钢丝编织铠装Steel wire weave armored……………………………………………………… B

铜丝编织屏蔽Copper wire weave shielded…………………………………………………… P

细圆钢丝铠装聚氯乙烯护套Fine round steel weave shielded……………………………… 32

聚氯乙烯护套PVC sheathed……………………………………………………………………V

软型多股铜丝Soft multiply copper wire……………………………………………………… R

矿用光缆

产品表示方法

Expression

电缆用型号、规格及标准编号表示。如:

a) 具有5个1/1.38对绞线芯的矿用聚乙烯绝缘镀锌钢丝铠装聚氯乙烯护套阻燃通信电缆应表示为:

MHY32  5×2×1/1.38

b) 具有一个7/0.52星绞线芯的矿用聚乙烯绝缘聚氯乙烯护套阻燃通信电缆表示为:

MHYVR  1×4×7/0.52

A)cable is expressed in model, specifications and standard No. For example:

a)  PE insulated tinned steel wire armored PVC sheathed fire retardant communication cable for coal mine with 5 1/1.38 twisted cores is expressed as: MHY32 5×2×1/1.38

b)  PE insulated PVC sheathed fire retardant communication cables with 1 7/0.52 twisted core is expressed as: MHYVR 1×4×7/0.52



产品结构简图

lllustrations of product structure

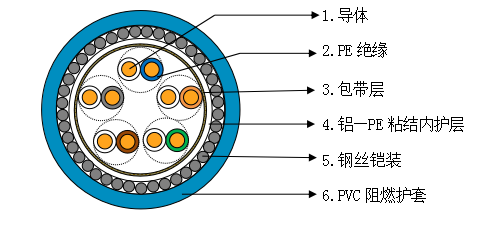

1、导体     2、PE绝缘     3、PE内护套      4、钢丝铠装层       5、兰阻燃PVC外护套

1. conductor 2. PE insulated   3. PE inner sheath   4. Steel wire armoring  5. Fire retardant PVC out
