硅橡胶电线 YGC / YGZ

硅橡胶电线 YGC / YGZ

  • 所属分类:其它特种电缆
  • 浏览次数:
  • 发布日期:2021-07-07 11:06:39
  • 产品概述
  • 性能特点
  • 技术参数

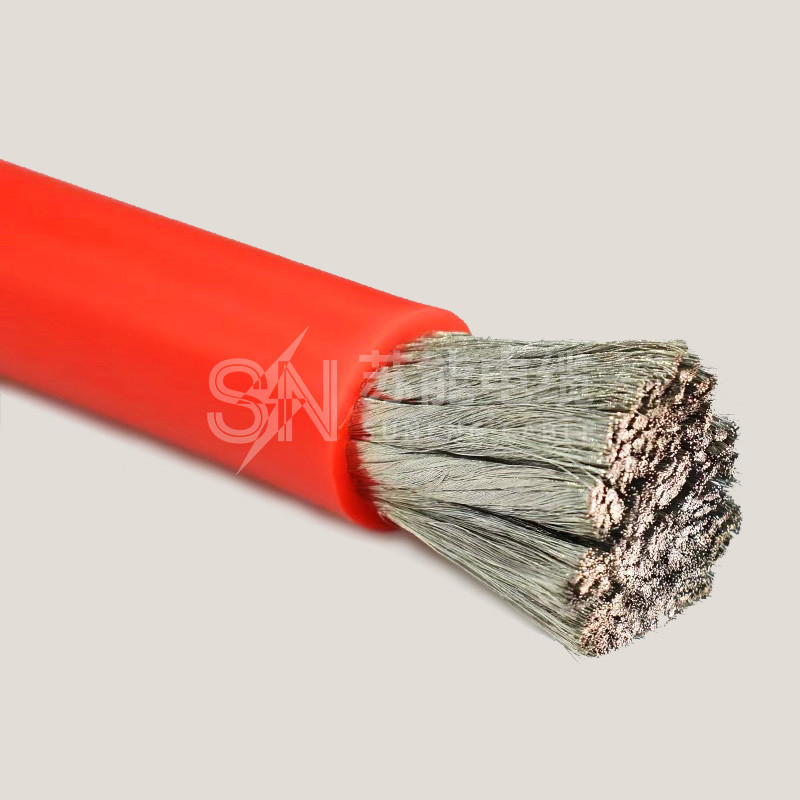

硅胶线、硅胶电缆(镀锡铜特软耐高温硅胶电线电缆)YGC  /  YGZ

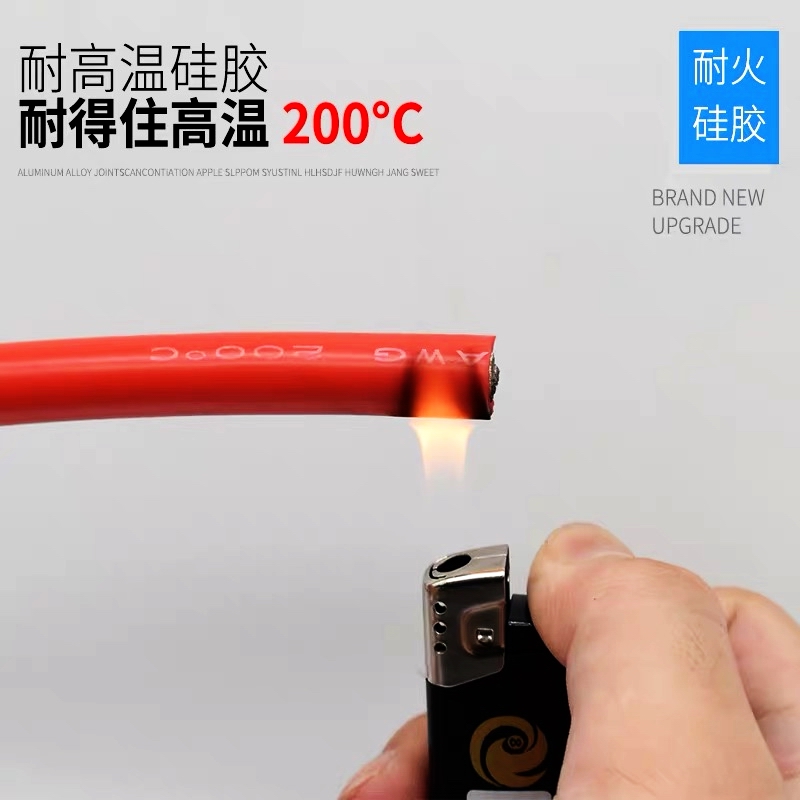

适用范围:广泛应用月电瓶、电池、家用电器、照明灯具、电子设备、电热制品、汽车工业、冶金、电力、石化、新能源高温环境。耐高温200摄氏度。


硅橡胶电线



硅橡胶电线厂家


特种数控系统专用电缆     Special Cable for NC System

这种PVC绝缘特种系统专用控制电缆是对外护套有较高机械力承受要求同时保持电缆柔软移动的场合而设计的。这种应用场合应该是持续弯曲自由移动但无辜拉力的拖链系统中。

 This kind of cable is designed for use where the outer sheath should stand a high mechanical force and the cable has the soft move. It is applied in trailing chain system with continuously-flexible free-move and with trailing force.

执行标准

Q/321084KKI01-2003

Executive Standard

Q/321084KKI01-2003

型号说明(见表1)Description of Table-1(see table-1)

表1Table-1



型号Type

 说明Description

SK-KVVR

PVC 绝缘和PVC外护套特种数控系统专用控制电缆

PVC insulated PVC outer sheath special NC system Control cable

SK-KVURT

PVC 绝缘PUR外护套电缆拖链系统专用控制电缆

PVC insulated PUR outer sheath special trailing chain system Control cable

SK-KVVRP

PVC 绝缘和PVC外护套铜丝编织特种数控系统专用控制电缆

PVC insulated PVC outer sheath copper wire weave shield special NC system Control cable

SK-KVURPT

PVC 绝缘和PUR外护套特种数控系统专用控制电缆  PVC insulated PUR outer sheath

copper wire shied high-flexible trailing chain system Control cable

SK-DJVUPRT

PVC 绝缘和PUR外护套特种数控系统专用控制电缆   Tuisted pair PVC insulated PUR

outer sheath copper wire weave shield trailing chain system data transmissoncable



产品特点(见表2)Characteristics of products table-2

表2Table-2


型号Type

特点 Characteristics

使用环境Use Environment

SK-KVVR

一流的机械性能和高柔性。使用周期长、在多班连续工作时仍能保持很好的稳定性、持久性:特殊PVC混合料抗化学腐蚀 First-grade mechanical properties and high flexibility Long-service cycle ,keeping good stability and durability in continuous operation for many shifts .Resistant chemical corrosion with special PVC com-posites

广泛使用在有举重和弯曲要求的控制单元中如机床生产、输送组装线、生产线、机器人和物流系统等  Widely applied trailing chain system , robot and mobile driving system

SK-KVURT

超一流的机械性能和高柔性.PUR 护套使得电缆使用寿命大延长,可以连班工作从而提供很好的性价比。持久性:PUR护套抗轻微撞击、防水解、抗菌、防臭氧、防氧化、防酸、油、油脂、汽油、水和各种天气。抗化学腐蚀Ultra first-grade mechanical properties and high flexibility With PUR sheath features crashproof ,hydrolysis resistance, anti-biosis ,ozone-proof, anioxidation ,acidproof and resistance to oil grease ,gasoline ,water weather and chemical corrosion.

广泛用于:输送组装线、生产线、机器人和物流系统等  Widely applied in production of machine tools, transportation ,assembling line, production line , robot and  distributing system for lifting and bending requirements

SK-KVVRP

一流的机械性能和高柔性.极佳的性价比、使用周期长、在多班连续工作是仍保持很好的稳定性。持久性:混合料抗化学腐蚀耐油性很好特殊PVC First-grade mechanical properties and high flexibility A good cost performance, long service cycle keeping good stability and durability, in continuous operation for many shifts. With special PVC compounds ,it has a good resistance to chemical corrosion and oil

广泛使用在有举重和弯曲要求的控制单元中如机床生产、输送组装线、生产线、机器人和物流系统等传输数据信号  Widely applied trailing chain system , robot and mobile driving system

SK-KVURPT

一流的机械性能和高柔性.芯线按数字编号安装识别更容易。持久性:特殊PVC混合料抗化学腐蚀耐油性能好。First-grade mechanical properties and high flexible fixing is the easily for core wire according aigital number ,with special  PVC compounds it has a good vesistance to chemical corrosion emdoil

广泛使用在有举重和弯曲要求的控制单元中如机床生产、输送物流系统等  Widely applied in control unit for lifting and bending require-ments ,such as production line ,robot and distributing system

SK-DJVUPRT

超一流的机械性能和高柔性。抗撕裂PETP内护套使得电缆使用寿命大延长,可以连班工作从而提供很好的性价比Ultra first-grade mechanical properties and flexibility with PETP inner sheath , it makes cable have a long service life and a good cost performance in continuons operation

广泛使用在有举重和弯曲要求的控制单元中如机床生产、输送组装线、生产线、机器人和物流系统等  Widely applied trailing chain system , robot and mobile driving system



产品结构和主要指标(见表3)Structure of products and main technical index (see table-3)

表3-1SK-KVVR型PVC绝缘和PVC外护套特种数控系统专用控制电缆结构和主要技术指标

Table-3-1 structure and main technical of SK-KVVR PVC insulated PVC outer sheath special NC system control cable.


电缆结构 Structure of Cable

技术指标  Technicallndex

结构设计根据 DIN VDE 0250 0812

Design of structure in accordance with DIN VDE 0250 0812

导体阻抗20℃

Lmpedance of conductor

20MΩ.km

导体

Conductor

多股精绞成束超细裸铜丝导体

Multi-strand twisted , ultra-fine bare copper wire

电压等级UO/U

Voltage grade UO/U

300/500V

导体结构

Structure of conductor

符合VDE0295  6类和IEC228  6类标准

Conforming to VDE 0295 Class-6 and IEC228 6

绝缘

Insulation

特殊PVC混合料

Special PVC compounds

测试交流电压50赫兹

AC 50Hz testing

2000V

芯线标识

Core wire marking

颜色或数字

Color or digital

Z小弯曲半径

Min bend radius

10×电缆外径

10×O.D.of cable

包覆

Wrapping

纺织纤维织物包覆

Textile fiber braid

温度范围

Temperature range

移动安装:-5℃至+70℃

Mobile installation

固定安装:-30℃至+80℃

Fixed installation

芯线排放

Core drain

芯线小节距绞合成缆

Core wire small pitch twisted into cable

外护套

Outer sheath

特殊PVC混合料YM2根据VDE0207第5条

Special PVC compounds YM2 according to VDE0207-5

 抗辐射

Anti-radiation

80Mard(80×106cj/kg)

外护套颜色

Color of outer sheath

灰色RAL 7001

Grey RAL 7001

燃烧测试

Burning testing

符合VOE0472第804部分B类试验和IEC60332-1 Conforms to VDE0472 Part-804 B and IEC60332-1
